Welcome to Sukhoi boys & Girls, here is the assembly line we build SU-35 to take care of business in Syria. This one came back from Syria for servicing. The rest are new ones we sold to Xijinping.
Ah Tiongs saw this Russian news of Sukhoi open house day, says, KNN! Those are our orders!
http://slide.mil.news.sina.com.cn/k/slide_8_193_65535.html#p=1
最后一批：待交付的中国版苏35战机疑似曝光
支持 键翻阅图片 列表查看
全屏观看
2018.07.14 09:49:10
近日阿穆尔河畔共青城加加林飞机制造厂举办了一次名为“无门日”的开放日活动，利用暑假的闲暇时间，欢迎教师和青少年前来工厂参观。图为前来共青城厂参观的教师在苏-33雕塑前合影。
最后一批：待交付的中国版苏35战机疑似曝光
支持 键翻阅图片 列表查看
全屏观看
2018.07.14 09:49:10
即将组装完毕的苏-35战机，5尾撑末端的平尾转轴清晰可见。
最后一批：待交付的中国版苏35战机疑似曝光
支持 键翻阅图片 列表查看
全屏观看
2018.07.14 09:49:10
在这批小观众背后赫然出现了一架疑似等待交付的中国空军苏-35战机。
最后一批：待交付的中国版苏35战机疑似曝光
支持 键翻阅图片 列表查看
全屏观看
2018.07.14 09:49:10
怎么看出来的呢？因为中国苏-35的机身下表面是浅灰色，而不是俄空天军自用型的浅蓝色。
最后一批：待交付的中国版苏35战机疑似曝光
支持 键翻阅图片 列表查看
全屏观看
2018.07.14 09:49:10
这是俄军苏-35S，很明显机腹就是浅蓝色。
这是一架正在大修的俄罗斯空天军苏-35，座舱侧面还有一排叙利亚实战红星。
讲解员头部右侧这架已经盖好雷达罩蒙皮的苏-35也是中国空军的，这说明最后一批10架苏-35即将如期交付。
这是制造完毕的苏-35中央机身段，该结构段是苏-35隐身融合体的核心，内部包含一个容量巨大的主机身油箱。
加工完毕的苏-35整体蒙皮，看起来像是前机身边条蒙皮。
苏-35钛合金发动机舱，为了承受平尾作用在两侧尾撑的巨大载荷，该机的发动机舱采用钛合金材料制造，并且在飞机涂装时不会上漆。
人群背后是制造发动机舱的夹具。
除了制造全新的苏-35以外，共青城厂还承接老式苏-27的升级，背景中那架就是被升级成SM或SM3标准的老苏-27战斗机，其雷达罩结构与苏-35完全不同。
即将组装完毕的苏-35。可以看到前缘襟翼上的IFF天线和尾喷下偏的矢量尾喷管。
在这张照片中，更是能看到垂尾根部的平尾致动器。
The last batch: the Chinese version of the Su 35 fighter to be delivered is suspected to be exposed
Support key flip through pictures list view
Full screen view
2018.07.14 09:49:10
1 / 15
Recently, the Gagarin Aircraft Manufacturing Plant in Komsomolsk-on-Amur has held an open-day event called “No Gate Day”. Using the leisure time of the summer vacation, teachers and teenagers are welcome to visit the factory. The picture shows the teachers who came to visit the Gongqingcheng factory in front of the Su-33 sculpture.
The last batch: the Chinese version of the Su 35 fighter to be delivered is suspected to be exposed
Support key flip through pictures list view
Full screen view
2018.07.14 09:49:10
2 / 15

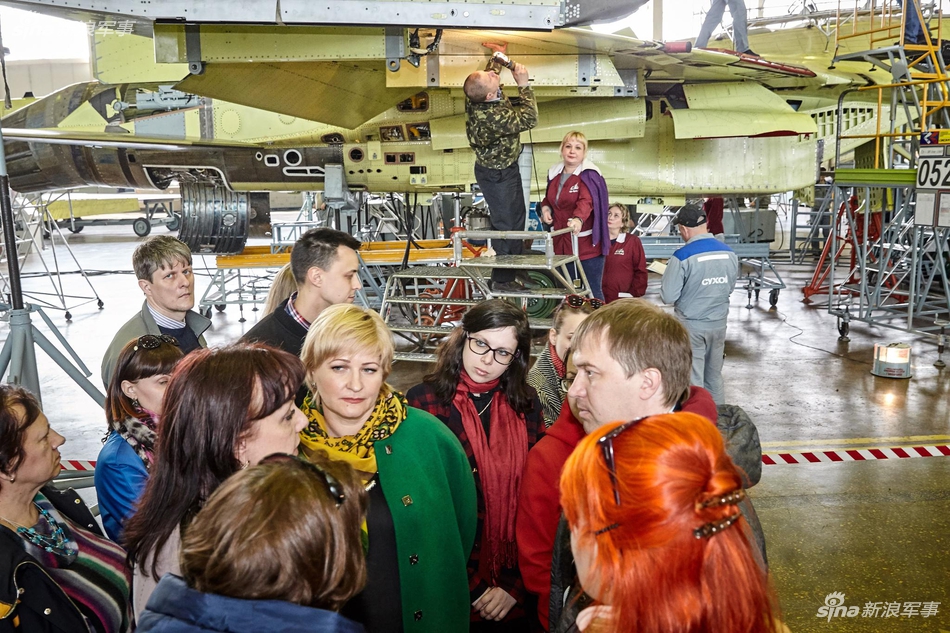

The Su-35 fighter that is about to be assembled, the flat tail shaft at the end of the 5th support is clearly visible.
The last batch: the Chinese version of the Su 35 fighter to be delivered is suspected to be exposed
Support key flip through pictures list view
Full screen view
2018.07.14 09:49:10
3 / 15

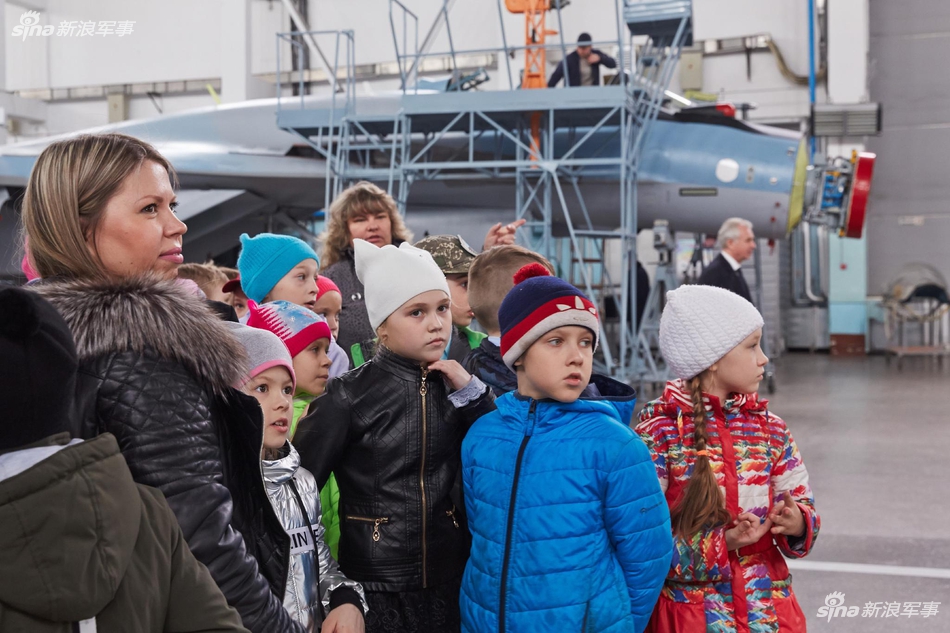

Behind these small audiences, there appeared a Chinese Air Force Su-35 fighter aircraft suspected of waiting to be delivered.
The last batch: the Chinese version of the Su 35 fighter to be delivered is suspected to be exposed
Support key flip through pictures list view
Full screen view
2018.07.14 09:49:10
4 / 15
How do you see it? Because the lower surface of the fuselage of the Chinese Su-35 is light gray, not the light blue of the Russian Air Force's own use.
The last batch: the Chinese version of the Su 35 fighter to be delivered is suspected to be exposed
Support key flip through pictures list view
Full screen view
2018.07.14 09:49:10
5 / 15

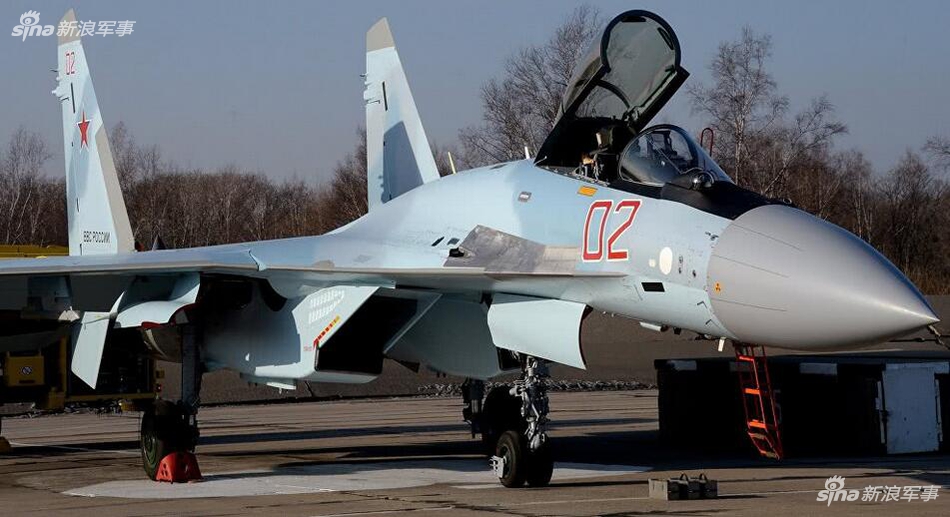

This is the Russian Army Su-35S, it is obvious that the belly is light blue.
6 / 15
This is an overhauled Russian Air Force Su-35, and there is a row of Syrian Red Stars on the side of the cockpit.
7 / 15

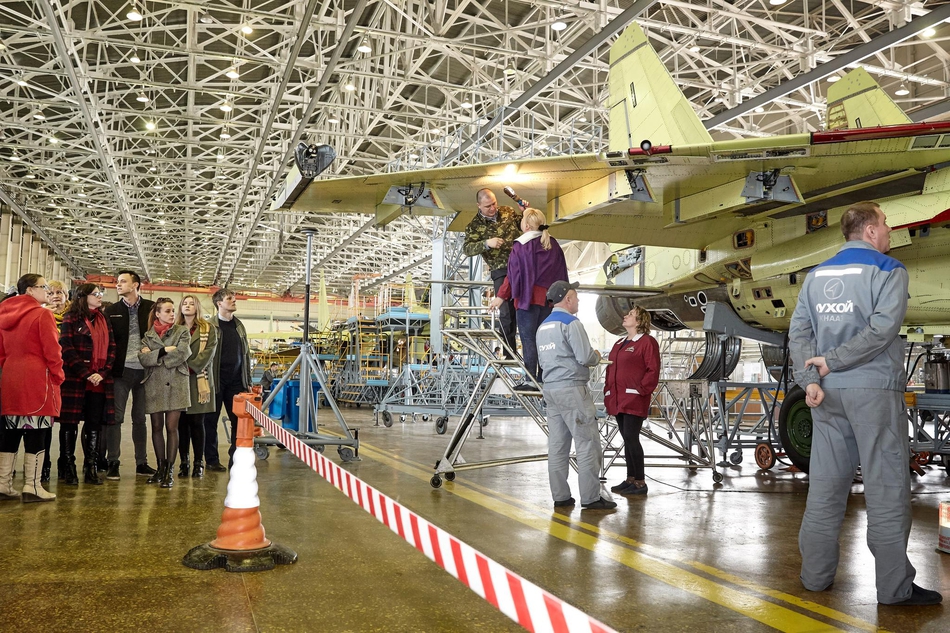

The Su-35, which has been covered with a radome skin on the right side of the commentator's head, is also the Chinese Air Force. This shows that the last 10 Su-35s will be delivered as scheduled.
8 / 15

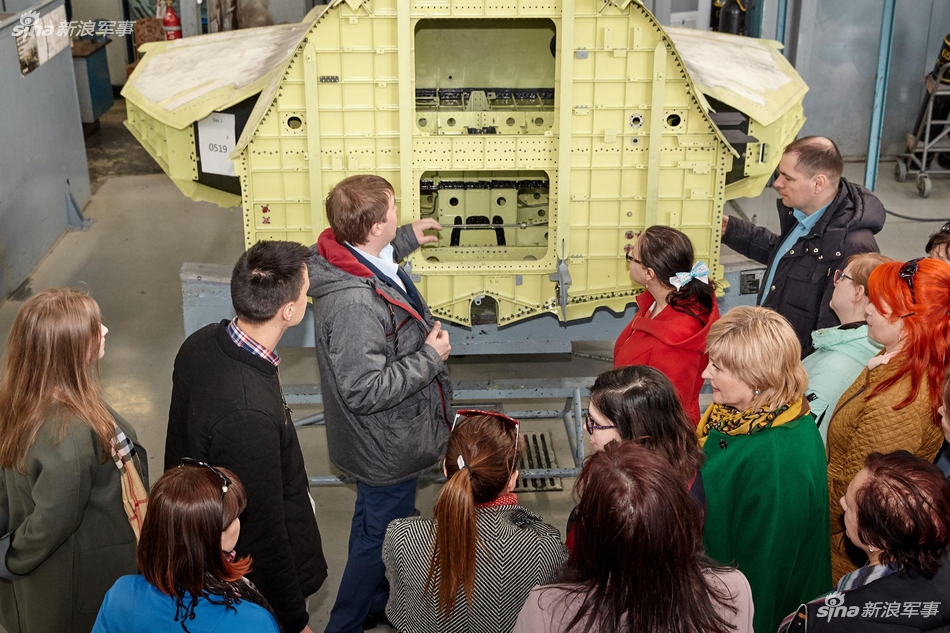

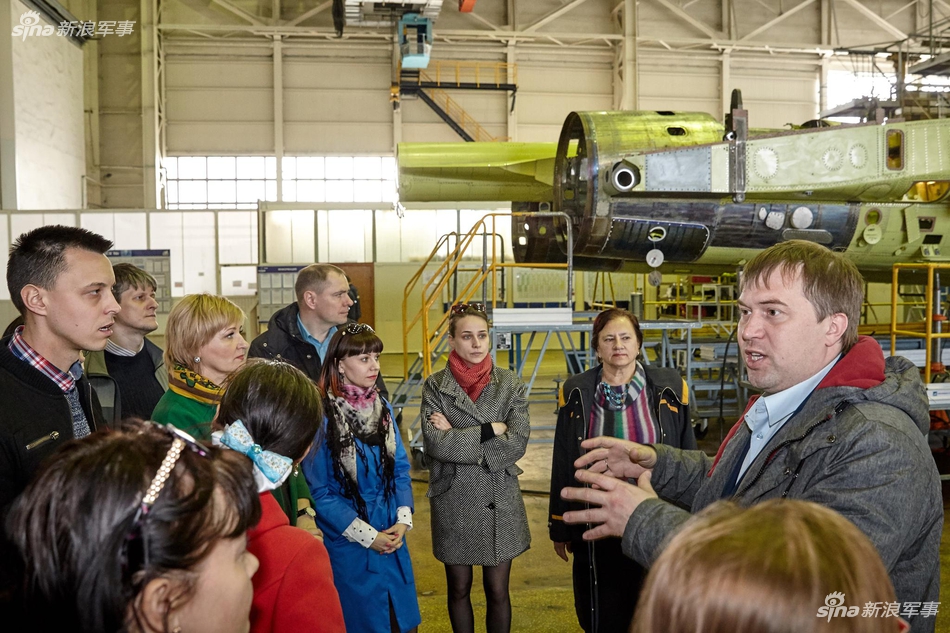

This is the finished Su-35 central fuselage section, which is the core of the Su-35 stealth fusion body, which contains a huge main body fuel tank.
9 / 15

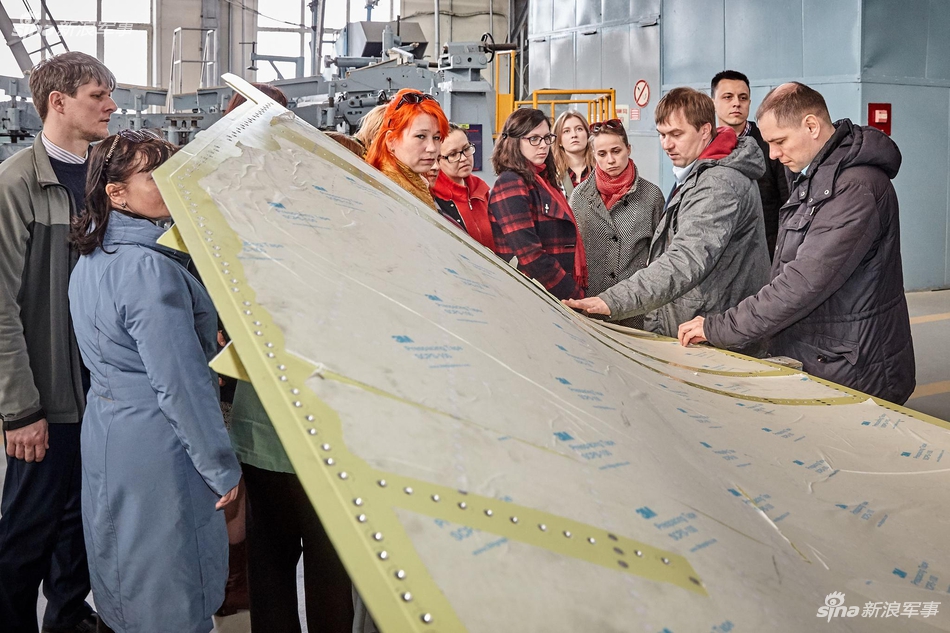

The finished Su-35 overall skin looks like a skin around the front.
10 / 15

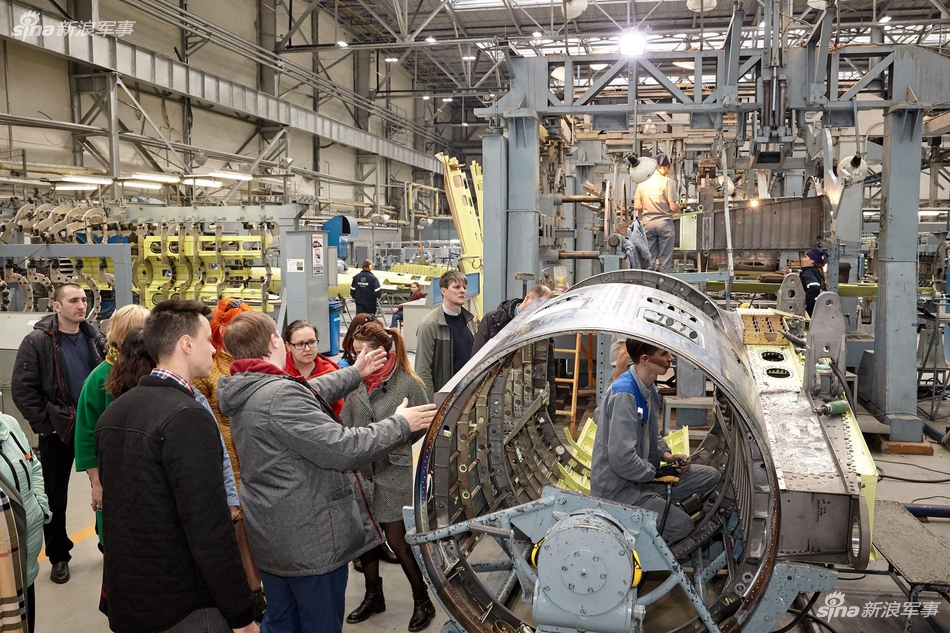

In the Su-35 titanium alloy engine compartment, in order to withstand the huge load of the tail tail on both sides of the tail, the engine compartment of the machine is made of titanium alloy and will not be painted when the aircraft is painted.
11 / 15

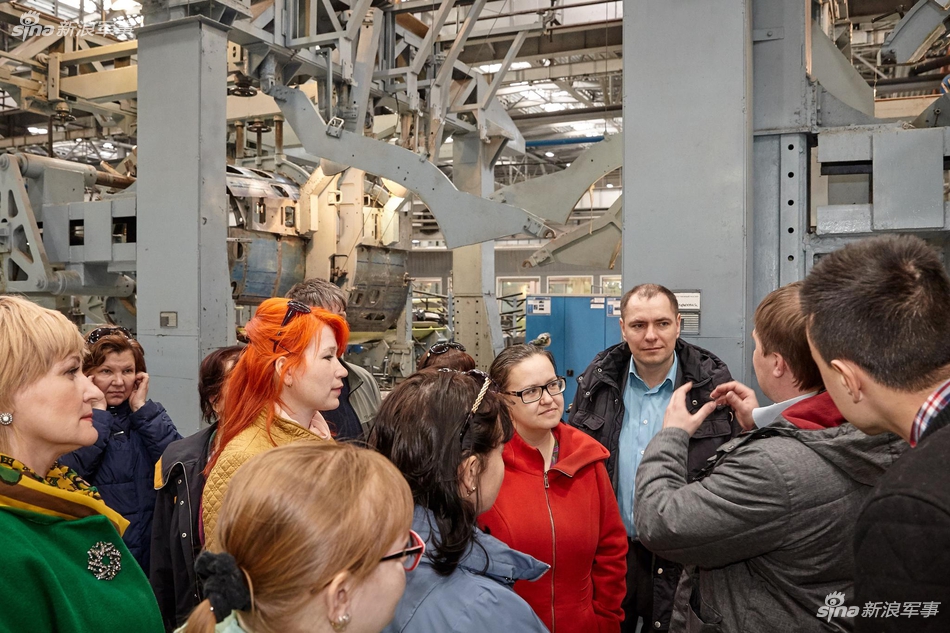

Behind the crowd is the fixture that makes the engine compartment.
12 / 15
In addition to the new Su-35, Gongqingcheng also undertakes the upgrade of the old Su-27. In the background, the old Su-27 fighter is upgraded to SM or SM3 standard. Its radome structure and Su-35 are completely different.
13 / 15
The Su-35 will be assembled soon. You can see the IFF antenna on the leading edge flap and the tail nozzle with a tail spray down.
14 / 15
In this photo, you can see the flat tail actuator at the base of the tail.
