Xijinping is going by the book step by step to FINE TUNE EVERYTHING for this job to be done perfectly - Capture Taiwan by PLA invasion. Everything & every steps, missing nothing.
TYPICAL TAIWANESE 4 STORY BUILDINGS to get leveled by KD-63B missiles
解放军最大量装备的空射导弹"最经济装"KD-63B型为什么是射程刚刚好对付台湾海峡最理想最经济的,不多也不少,量身定制啊?500公斤弹头一粒解决一栋4层楼的钢筋水泥建筑,刚刚好这又是台湾最常见的楼宇格式呢! http://slide.mil.news.sina.com.cn/k/slide_8_193_64041.html#p=1 特别又是现在专门挂这种导弹每天每夜绕台湾岛巡航! 不简单哦!
http://slide.mil.news.sina.com.cn/k/slide_8_193_64041.html#p=1
一枚炸平4层大楼！我军KD-63B导弹亮相夜间绕岛巡航
支持 键翻阅图片 列表查看
全屏观看 2018.05.29 08:41:07

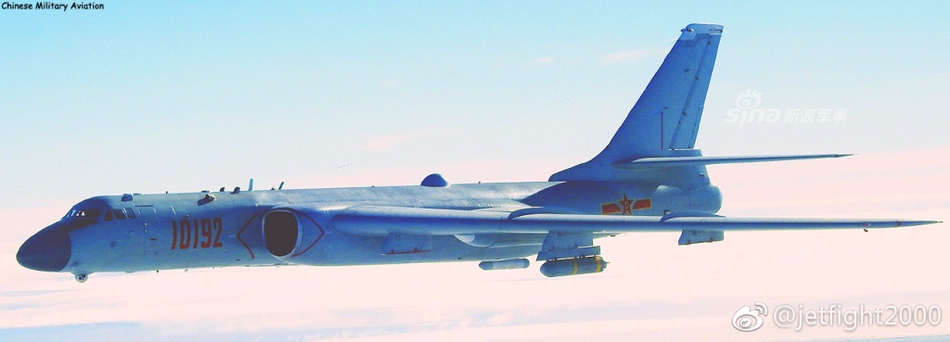

南部战区空军航空兵某部两架H-6K于25日凌晨4时许飞经巴士海峡后进入宫古水道，再次实施绕岛训练。随后中国空军发布的图片显示该机左侧机翼下方携挂了KD-63B红外成像制导战术空对地导弹训练弹，机身后下方携挂了与之配套的数据链吊舱。与先前H-6K多次携挂的射程1500公里的KD-20战略巡航导弹不同，KD-63B的打击对象涵盖了台湾本岛几乎所有的军事和经济目标，特别是受到岩石和钢筋水泥保护的硬目标。因此对台军来说，KD-63B的实际威胁性更大。（来源：jetfight2000）
一枚炸平4层大楼！我军KD-63B导弹亮相夜间绕岛巡航
支持 键翻阅图片 列表查看
全屏观看 2018.05.29 08:41:07
支持 键翻阅图片 列表查看
全屏观看 2018.05.29 08:41:07

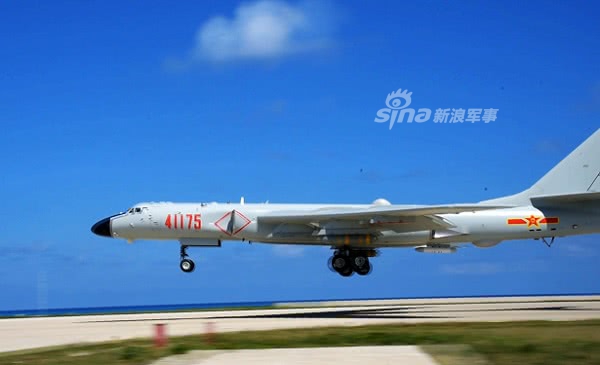

与KD-63配套使用的轰炸机平台为H-6H型，该型轰炸机系西飞集团在老型H-6导弹载机H-6D的基础上改进而来，在机体结构上照之前的H6并无太大变化，但在其扩大了的机头雷达罩内安装了大型目标搜索/火控雷达，用于搜索目标并对导弹实施中继指令制导，
支持 键翻阅图片 列表查看
全屏观看 2018.05.29 08:41:07
Why is the KD-63B, the most economically loaded missile for air-launched missiles equipped with the largest amount of equipment, just the best and most economical for the Taiwan Strait? No more, no more, tailor-made? A 500-kilogram warhead solves a problem. The four-story reinforced concrete building is just one of the most common building formats in Taiwan! http://slide.mil.news.sina.com.cn/k/slide_8_193_64041.html#p=1 Specially it is now We hang this missile and cruise around Taiwan Island every night! It's not easy!
Http://slide.mil.news.sina.com.cn/k/slide_8_193_64041.html#p=1
A fried four-storey building! Our military KD-63B missile debut night cruise around the island
Support key to flip picture list view
Full screen viewing
2018.05.29 08:41:07
1 / 11
Two H-6Ks of a certain air force unit of the Southern Theater Air Force flew through the Bashi Channel and entered the Miyako Waterway at 4 a.m. on the 25th to implement training around the island again. Subsequently, the pictures issued by the Chinese Air Force showed that the KD-63B infrared imaging guided tactical air-to-ground missile training missile was carried under the wing on the left side of the aircraft, and a data link pod was attached to the lower back of the aircraft. Unlike the KD-20 strategic cruise missile with a range of 1500 km that H-6K has repeatedly carried on the previous H-6K, KD-63B hits almost all the military and economic targets of Taiwan's island, especially the hard rock and reinforced concrete. aims. Therefore, the KD-63B is even more threatening to the Taiwan military. (Source: jetfight2000)
A fried four-storey building! Our military KD-63B missile debut night cruise around the island
Support key to flip picture list view
Full screen viewing
2018.05.29 08:41:07
Sina Military Depth: Although KD-63 is quite different from its archetypal hawkish-6 in terms of use and guidance mode, its basic shape has not changed much from that of Eagle Strike-6. The bomb is still old. Taking the similar layout of a small aircraft, with a length of 7.0 meters, a bullet diameter of 760 mm, a trapezoidal main wing with a wingspan of 2.4 meters, an empennage with an X-shape layout, and four fins installed perpendicular to each other, this aerodynamic layout is more suitable for low-level air conditions on the ground.
A fried four-storey building! Our military KD-63B missile debut night cruise around the island
Support key to flip picture list view
Full screen viewing
2018.05.29 08:41:07
3 / 11

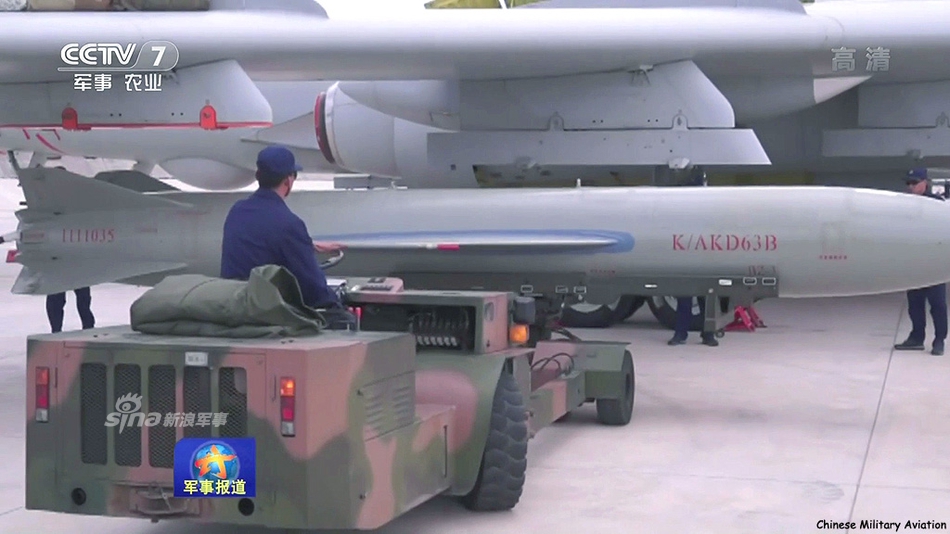

Due to the change in structure and material composition, the full weight of the bomb was considerably reduced compared to the YJ-6 to 2,000 kg. At the same time, the power was not reduced at all. The bomb still used 500 kg blasting and warheads at the front of the missile. There is a small optical window for the installation of the optical probe of the television guidance system. The working life of the missile guidance system is 100 hours, and the storage life is 10 years. The total weight of the television guidance head is 50 kg.
4 / 11

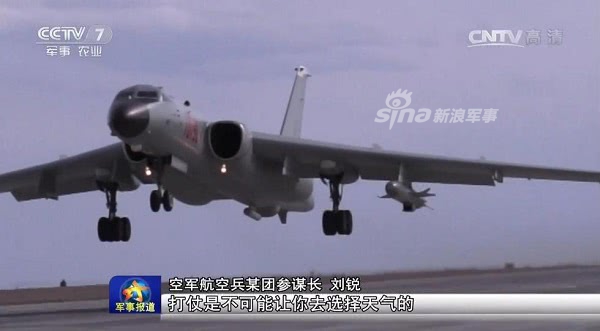

The bomber platform used with the KD-63 is the H-6H. This type of bomber is an improvement from the old H-6 missile carrier H-6D. It is based on the previous H6. There was no major change, but a large target search/fire control radar was installed in its enlarged nose radome to search for targets and to implement relay command guidance for missiles.

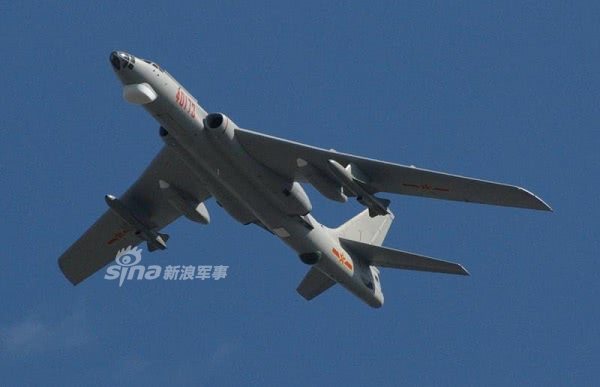

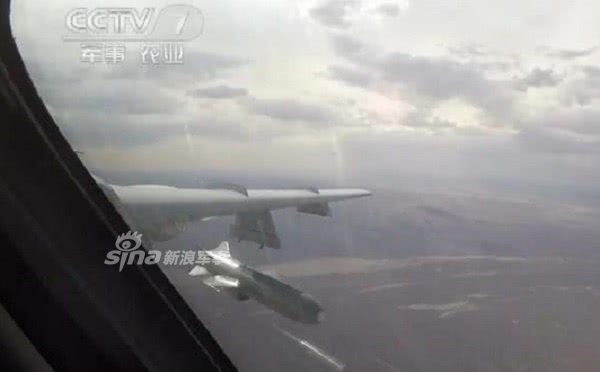

At the same time, this type of bomber added a pair of large-scale weapon racks on the outside of the wing, making it possible to mount four KD-63 missiles at the same time to ascend the air on the premise of a small voyage requirement. , thus strengthening the fire strike density and improving the task flexibility
The KD-63 missile uses a hybrid guided mode of inertial/radio command guidance and terminal television guidance. The general operational flow is: The carrier uses radar to find the approximate location of the target. The height of the adjustment ranged from 200 to 5,000 meters. The missile was launched. The launch mode was free-fall launch. After launch, the missile departed from the carrier by about 70 to 120 meters, the engine ignites and climbs or dives, and the course is corrected. flight.
The cruising section can either rely on the missile-borne inertial guidance device for automatic control or manual control. Cruise speed 900 km/h. The cruising altitude is 7 meters ~~1000 meters, and the typical mission cruising altitude is 600 meters. According to the launch and cruising altitude, the missile has an effective range of up to 180 kilometers, a maximum power range of 240 kilometers, and a minimum range of 20 kilometers.
When the missile reaches the target area, it starts to use the TV guidance system to intercept and lock the target. For a typical target (castle, fortification, etc.), the maximum target interception distance is 18 kilometers, and the maximum locking distance is 12 kilometers. With a guidance distance of 6 kilometers, the probability of interception of the target in the automatic state is 98%, and the artificial state is 99%. After the target is locked, the missile moves into the dive to attack the target. The hit probability is 90% or more (ideal weather conditions), and the hit precision reaches 2-6 meters.
The service of the KD-63 marks the first few years of the 21st century for the Chinese Air Force to finally enter the threshold of the medium and long-range precision strike, with the ability to accurately project firepower outside the defense zone.
A fried four-storey building! Our military KD-63B missile debut night cruise around the island
Support key to flip picture list view
Full screen viewing
2018.05.29 08:41:07
Although there are many frustrations in the realization of this capability, KD-63 missiles are the first large-scale equipment to be equipped by China’s air force because of its conductor system and other reasons, its combat effectiveness is limited by many restrictions rather than perfection. The long-range precision strikes on weapons, and their contribution to our military strike capability are still huge and beyond doubt.
TYPICAL TAIWANESE 4 STORY BUILDINGS to get leveled by KD-63B missiles
解放军最大量装备的空射导弹"最经济装"KD-63B型为什么是射程刚刚好对付台湾海峡最理想最经济的,不多也不少,量身定制啊?500公斤弹头一粒解决一栋4层楼的钢筋水泥建筑,刚刚好这又是台湾最常见的楼宇格式呢! http://slide.mil.news.sina.com.cn/k/slide_8_193_64041.html#p=1 特别又是现在专门挂这种导弹每天每夜绕台湾岛巡航! 不简单哦!
http://slide.mil.news.sina.com.cn/k/slide_8_193_64041.html#p=1
一枚炸平4层大楼！我军KD-63B导弹亮相夜间绕岛巡航
支持 键翻阅图片 列表查看
全屏观看 2018.05.29 08:41:07
南部战区空军航空兵某部两架H-6K于25日凌晨4时许飞经巴士海峡后进入宫古水道，再次实施绕岛训练。随后中国空军发布的图片显示该机左侧机翼下方携挂了KD-63B红外成像制导战术空对地导弹训练弹，机身后下方携挂了与之配套的数据链吊舱。与先前H-6K多次携挂的射程1500公里的KD-20战略巡航导弹不同，KD-63B的打击对象涵盖了台湾本岛几乎所有的军事和经济目标，特别是受到岩石和钢筋水泥保护的硬目标。因此对台军来说，KD-63B的实际威胁性更大。（来源：jetfight2000）
一枚炸平4层大楼！我军KD-63B导弹亮相夜间绕岛巡航
支持 键翻阅图片 列表查看
全屏观看 2018.05.29 08:41:07

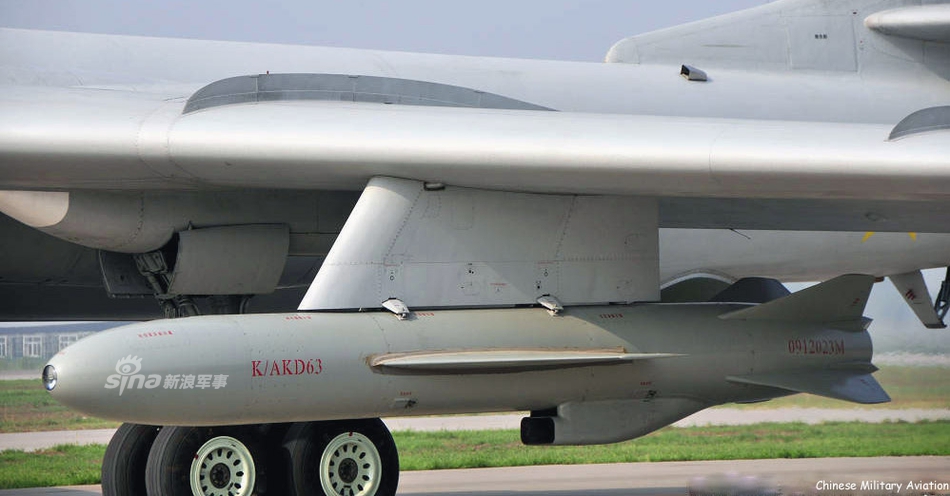

- 新浪军事深度：KD-63虽然和其原型鹰击-6在用途以及制导模式等方面存在相当大的差别，但其基本外形相比鹰击-6却并没有太大的变化，,该弹仍旧采取类似小型飞机的常规布局，弹长7.0米，弹径760mm，梯形主翼翼展2.4米，尾翼采用X型布局，四片尾翼彼此垂直安装，这样的气动布局更加适合地面低空的气流环境，
支持 键翻阅图片 列表查看
全屏观看 2018.05.29 08:41:07
- 3 / 11
由于改变了结构和材料构成，使得该弹全重较YJ-6有相当程度的降低，为2000千克，同时威力却没有任何降低，该弹仍然使用了500公斤爆破杀伤战斗部，在导弹最前端有小型光学窗口，用以安装电视制导系统的光学探头，该弹制导系统工作寿命100小时，贮存寿命10年，电视引导头全重50公斤。
与KD-63配套使用的轰炸机平台为H-6H型，该型轰炸机系西飞集团在老型H-6导弹载机H-6D的基础上改进而来，在机体结构上照之前的H6并无太大变化，但在其扩大了的机头雷达罩内安装了大型目标搜索/火控雷达，用于搜索目标并对导弹实施中继指令制导，
- 巡航段既可以依托弹载惯性制导装置实施自动控制，也可以人工控制。巡航飞行速度900公里/小时。巡航高度7米~~1000米，典型任务巡航高度600米，根据发射和巡航高度，导弹有效射程最大可达180公里，最大动力射程240公里，最小射程20公里。
- 当导弹飞抵目标区域范围后开始启用电视制导系统对目标进行最后的截获和锁定，该系统对于某典型目标(机堡、工事等)，最大目标截获距离18公里，最大锁定距离12公里，最小制导距离6公里，自动状态下对目标的截获概率为98%，人工状态为99%。锁定目标后，导弹随进转入俯冲对目标实施攻击，其命中概率为90%以上(理想气象条件)，命中精可达2~6米。
KD-63的服役标志着我国空军在21世纪的最初几年，终于迈进了中远程精确打击的门槛，具备了防区外精确火力投射的能力，
支持 键翻阅图片 列表查看
全屏观看 2018.05.29 08:41:07
- 虽然这种能力的实现过程中透出了诸多的无奈，而且KD-63导弹由于其制导体制等方面的原因，其作战效能受到多方局限而非尽善尽美，但作为我国空军所装备的第一款大型中远程精确打击武器，其对我军打击能力的贡献仍然是巨大而毋庸置疑的。
Why is the KD-63B, the most economically loaded missile for air-launched missiles equipped with the largest amount of equipment, just the best and most economical for the Taiwan Strait? No more, no more, tailor-made? A 500-kilogram warhead solves a problem. The four-story reinforced concrete building is just one of the most common building formats in Taiwan! http://slide.mil.news.sina.com.cn/k/slide_8_193_64041.html#p=1 Specially it is now We hang this missile and cruise around Taiwan Island every night! It's not easy!
Http://slide.mil.news.sina.com.cn/k/slide_8_193_64041.html#p=1
A fried four-storey building! Our military KD-63B missile debut night cruise around the island
Support key to flip picture list view
Full screen viewing
2018.05.29 08:41:07
1 / 11
Two H-6Ks of a certain air force unit of the Southern Theater Air Force flew through the Bashi Channel and entered the Miyako Waterway at 4 a.m. on the 25th to implement training around the island again. Subsequently, the pictures issued by the Chinese Air Force showed that the KD-63B infrared imaging guided tactical air-to-ground missile training missile was carried under the wing on the left side of the aircraft, and a data link pod was attached to the lower back of the aircraft. Unlike the KD-20 strategic cruise missile with a range of 1500 km that H-6K has repeatedly carried on the previous H-6K, KD-63B hits almost all the military and economic targets of Taiwan's island, especially the hard rock and reinforced concrete. aims. Therefore, the KD-63B is even more threatening to the Taiwan military. (Source: jetfight2000)
A fried four-storey building! Our military KD-63B missile debut night cruise around the island
Support key to flip picture list view
Full screen viewing
2018.05.29 08:41:07
Sina Military Depth: Although KD-63 is quite different from its archetypal hawkish-6 in terms of use and guidance mode, its basic shape has not changed much from that of Eagle Strike-6. The bomb is still old. Taking the similar layout of a small aircraft, with a length of 7.0 meters, a bullet diameter of 760 mm, a trapezoidal main wing with a wingspan of 2.4 meters, an empennage with an X-shape layout, and four fins installed perpendicular to each other, this aerodynamic layout is more suitable for low-level air conditions on the ground.
A fried four-storey building! Our military KD-63B missile debut night cruise around the island
Support key to flip picture list view
Full screen viewing
2018.05.29 08:41:07
3 / 11
Due to the change in structure and material composition, the full weight of the bomb was considerably reduced compared to the YJ-6 to 2,000 kg. At the same time, the power was not reduced at all. The bomb still used 500 kg blasting and warheads at the front of the missile. There is a small optical window for the installation of the optical probe of the television guidance system. The working life of the missile guidance system is 100 hours, and the storage life is 10 years. The total weight of the television guidance head is 50 kg.
4 / 11
The bomber platform used with the KD-63 is the H-6H. This type of bomber is an improvement from the old H-6 missile carrier H-6D. It is based on the previous H6. There was no major change, but a large target search/fire control radar was installed in its enlarged nose radome to search for targets and to implement relay command guidance for missiles.
At the same time, this type of bomber added a pair of large-scale weapon racks on the outside of the wing, making it possible to mount four KD-63 missiles at the same time to ascend the air on the premise of a small voyage requirement. , thus strengthening the fire strike density and improving the task flexibility
The KD-63 missile uses a hybrid guided mode of inertial/radio command guidance and terminal television guidance. The general operational flow is: The carrier uses radar to find the approximate location of the target. The height of the adjustment ranged from 200 to 5,000 meters. The missile was launched. The launch mode was free-fall launch. After launch, the missile departed from the carrier by about 70 to 120 meters, the engine ignites and climbs or dives, and the course is corrected. flight.
The cruising section can either rely on the missile-borne inertial guidance device for automatic control or manual control. Cruise speed 900 km/h. The cruising altitude is 7 meters ~~1000 meters, and the typical mission cruising altitude is 600 meters. According to the launch and cruising altitude, the missile has an effective range of up to 180 kilometers, a maximum power range of 240 kilometers, and a minimum range of 20 kilometers.
When the missile reaches the target area, it starts to use the TV guidance system to intercept and lock the target. For a typical target (castle, fortification, etc.), the maximum target interception distance is 18 kilometers, and the maximum locking distance is 12 kilometers. With a guidance distance of 6 kilometers, the probability of interception of the target in the automatic state is 98%, and the artificial state is 99%. After the target is locked, the missile moves into the dive to attack the target. The hit probability is 90% or more (ideal weather conditions), and the hit precision reaches 2-6 meters.
The service of the KD-63 marks the first few years of the 21st century for the Chinese Air Force to finally enter the threshold of the medium and long-range precision strike, with the ability to accurately project firepower outside the defense zone.
A fried four-storey building! Our military KD-63B missile debut night cruise around the island
Support key to flip picture list view
Full screen viewing
2018.05.29 08:41:07
Although there are many frustrations in the realization of this capability, KD-63 missiles are the first large-scale equipment to be equipped by China’s air force because of its conductor system and other reasons, its combat effectiveness is limited by many restrictions rather than perfection. The long-range precision strikes on weapons, and their contribution to our military strike capability are still huge and beyond doubt.
